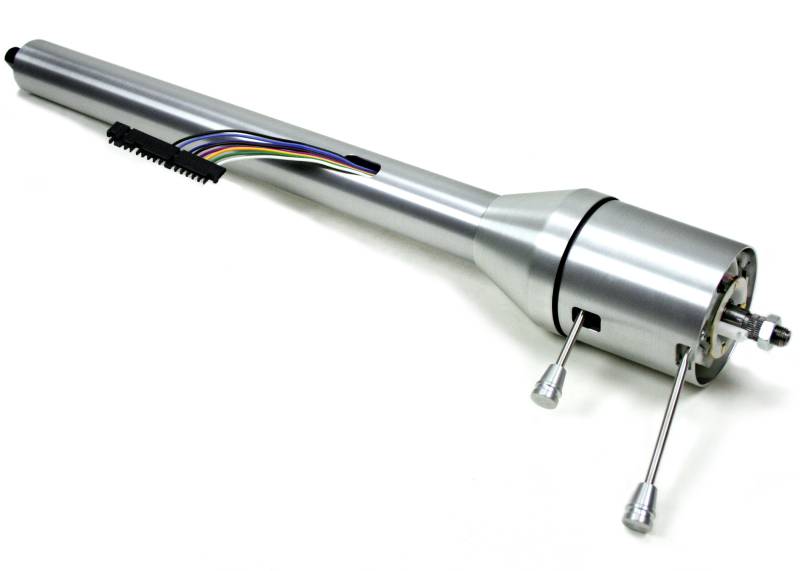

1953-56 GM Style Ford Half-Ton Truck Tilt Floor Shift Steering Column - Brushed
This GM based Ford Truck column is designed to fit your Ford Truck and features a GM upper shaft, along with a 3 7/8" wiring plug. The 1953-56 columns require a new swinger style column drop, floor mount, and u-joint. Using an adaptor, add an aftermarket wheel and the gripping surface will be the same location as the original.
Please Note: A stock Ford steering wheel WILL NOT bolt to the ididit GM Style Ford column.
INSTALLATION KITS (all the required components needed for flawless installation)
1953-56 Ford Half-Ton Truck
This GM style column comes complete with a turn signal plug and horn relay which will convert the ididit wiring to your Ford wiring. To install, a swinger-style column drop will be required to secure the column to the dash, as well as a floor mount and u-joint. Modification of the intermediate shaft is also required if you are using the original gearbox.
1965-79 Ford Half-Ton Truck
A new rag joint is required to install. This column comes complete with a pre-welded underdash mount that will match the original bolt pattern. A Female End Plug which connects with the ididit wiring plug is also included. The wires will simply be matched by function rather than color.
For 1965-66 columns: Please note that the Bendix box was frequently used as a replacement for the Saginaw box. If not using the original steering box, a shorter length column may be required. Call ididit for details.
- Item Requires Shipping
- 12.9 lbs.
- W8.0000” x H6.0000” x L44.0000”
